Quickly build reusable, modular native iOS applications
Written and developed by Matt Piccolella and ADI.
Credit to Use React Native, Ray Wenderlich, Facebook Developers.
Download the sample code here.
React Native is Facebook's solution to building native iOS and Android applications using JavaScript. It represents the first real attempt to bring web technologies to native mobile development. In the past, solutions like PhoneGap have used web-based solutions, which can be slow and unresponsive. With React Native's open source framework for building applications, you can build beautiful mobile applications.
React Native is built on Facebook's belief that you should "build once, run everywhere." This means that, once you write your application using React Native, you will have both an iOS application and an Android application, which represents incredible time saving.
In addition, React Native doesn't require to rebuild your application each time you make a change, meaning you can "refresh" the page just as you do in web development and see your changes.
Finally, JavaScript is a much more familiar and universal language than Objective-C. Now, you can harness the #skills you have from web programming and put them to use in creating awesome mobile applications, which are much more easily debuggable and stylable.
This tutorial will teach you the basics of React Native. We will go through the basic concepts, ranging from React components, to Flexbox and styling, to running your application in XCode. It will NOT teach you all of the methods or possibilities of React Native. If you are interested in learning more in-depth material than this tutorial can offer, examples are available, as well as all the documentation.
This document contains a series of several sections, each of which explains a certain sector of our sample iOS application. In each section, we will add some code to our application. All of the code is available both in this document and in the GitHub repo available here.
- Preface: Setting up your Computer
- Project Description: GithubFinder
- 1.0 "Hello World" in React Native
- 2.0 The Basics of React
- 3.0 Search Bar and Data Retrieval
- 4.0 Showing our Results
- Conclusion
- Additional Resources
To use React Native, there are a few requirements that you will need:
1. OS X - as we will be using XCode, your computer must be running Mac OS X.
2. XCode - this is the application that you normally program iOS applications in. For React Native, we will merely run the application using XCode.
3. Homebrew - the recommended package installer for Mac. We will use this to install a few pieces of software we will need.
To begin the process, please install XCode here. To install Homebrew, please run the following command in your Terminal:
$ ruby -e "$(curl -fsSL https://raw.githubusercontent.com/Homebrew/install/master/install)"Once you have XCode and Homebrew installed, please run the following commands from your terminal:
$ brew install node
$ brew install --HEAD watchman
$ npm install -g react-native-cliYou may be wondering why we are installing Node, a web technology, when we are working on iOS applications. Node is used by React Native to run our application, which enables the refreshing we will see in a moment.
Once you have installed these, your computer is all setup to program in React Native!
In this tutorial, we will program a sample application that will allow us to search for projects on GitHub. This will allow to search for applications on GitHub so we can decide whether an application we want to find exists, or whether an application we want to make has been made yet.

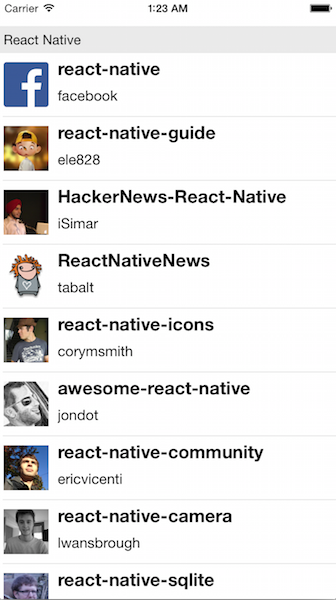

Each step of our application will move us toward our final product, which will be our GithubFinder application.
In this section, we will create our first basic "Hello World" app in React Native. This will show us how to start a project, how to use XCode, how to use the simulator, and what files are involved in our project.
To create our project, we will use the React Native command-line-interface we installed before. To create our application, open your Terminal, navigate to a folder in which you want to keep your project, and type the following command:
$ react-native init GithubFinderIf it worked, you should see something like the following output in your Terminal:
Next steps:
Open /Users/Matt/Desktop/GithubFinder/GithubFinder.xcodeproj in Xcode
Hit Run button
That means we have successfully created our first iOS application using React Native! If you look at the files in our new project folder, you should see something like this:
GithubFinder.xcodeproj iOS index.ios.js
node_modules package.json
In a later section, we will explain what each one of these files does, and which of them will be important to us.
Now, let's open our application. So, run XCode, and select:
File > Open
and from within the directory that was just created, select GithubFinder.xcodeproj. Once you have done this, press the Play button in the top left corner of the application, or simply type Cmd-R, to run your application. Once this happens, a new Terminal window should open with output similar to this:
===============================================================
| Running packager on port 8081.
| Keep this packager running while developing on any JS
| projects. Feel free to close this tab and run your own
| packager instance if you prefer.
|
| https://github.com/facebook/react-native
|
===============================================================
Looking for JS files in
/Users/Matt/Desktop/GithubFinder
Don't exit out of this window, as it will package up your JavaScript code into your iOS application. You can minimize both XCode and the Terminal window that was just created; you don't need them anymore!
However, what you will need is the Simulator, which we will take about now.

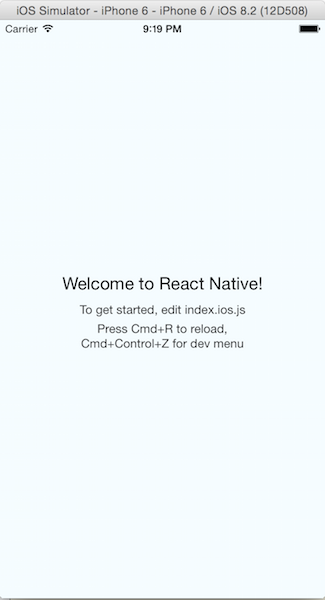

We will use the Simulator to simulate a real iOS device. We do this because an iOS developer's license is required to run applications on a real device. The simulator looks like this:
For us, the simulator is quite simple. To refresh, we simply type Cmd-R to reload our application. Once we start to make changes to our application, you will see how nice this becomes.
Now that we have our simulator running, let's go back to the structure of the project we created. We saw before that the files contained inside of our project include:
GithubFinder.xcodeproj iOS index.ios.js
node_modules package.json
Let's look at each file:
GithubFinder.xcodeproj- contains details necessary to open our application in XCode. This is what you open when you open XCode.iOS- the file that contains all of the iOS code that is generated by React Native. Important: IGNORE THIS, we don't need to worry about it.node_modules- contains the modules necessary for Node. This is also unimportant to uspackage.json- provides some details about our application
These four files are not relevant to us in our creating our application. In fact, there is only one file we need to care about, which is index.ios.js. This makes it super easy for us from a development perspective; in a single file, we can define styles, transitions, and behaviors of our application.
The code of our file looks as follows:
/**
* Sample React Native App
* https://github.com/facebook/react-native
*/
'use strict';
var React = require('react-native');
var {
AppRegistry,
StyleSheet,
Text,
View,
} = React;
var GithubFinder = React.createClass({
render: function() {
return (
<View style={styles.container}>
<Text style={styles.welcome}>
Welcome to React Native!
</Text>
<Text style={styles.instructions}>
To get started, edit index.ios.js
</Text>
<Text style={styles.instructions}>
Press Cmd+R to reload,{'\n'}
Cmd+Control+Z for dev menu
</Text>
</View>
);
}
});
var styles = StyleSheet.create({
container: {
flex: 1,
justifyContent: 'center',
alignItems: 'center',
backgroundColor: '#F5FCFF',
},
welcome: {
fontSize: 20,
textAlign: 'center',
margin: 10,
},
instructions: {
textAlign: 'center',
color: '#333333',
marginBottom: 5,
},
});
AppRegistry.registerComponent('GithubFinder', () => GithubFinder);The code, while it may look familiar in some aspects, has lots of concepts, which will represent most of our work here. The next section will attempt to explain each of the concepts present in this file.
In this section, we will disect our index.ios.js file to understand each of the parts that makes up a React application.
To start, we can look at the section of the code that looks as follows:
var {
AppRegistry,
StyleSheet,
Text,
View,
} = React;This is a list of the components that we will use in our application. In React, a component is a UI element that we can create; for example, we can have some Text or a View. Components are meant to be modular; they represent some small aspect that can be reused. In addition, a major aspect of components is that they are combinable; a Text component could reside within a View component, for example.
In this list, we put all of the components that we plan to use. Each of the components listed here is a built-in component that React Native provides us. Other components include Image, TextInput, or ListView. We will see these later.
In this segment of code, we create our first custom component:
var GithubFinder = React.createClass({
render: function() {
return (
<View style={styles.container}>
<Text style={styles.welcome}>
Welcome to React Native!
</Text>
<Text style={styles.instructions}>
To get started, edit index.ios.js
</Text>
<Text style={styles.instructions}>
Press Cmd+R to reload,{'\n'}
Cmd+Control+Z for dev menu
</Text>
</View>
);
}
});We use the React.createClass method, which takes a JSON object containing some functions, to create our custom component. Here, we create a component called GithubFinder. This can be viewed the same way as the Text or View components we saw before, and the same concepts apply; we will see that our GithubFinder consists of these very same views.
Inside of this method, we place a single method: render. This method takes no arguments, and simply returns the View that we wish to render for the component. In this case, the View we wish to render looks like this:
<View style={styles.container}>
<Text style={styles.welcome}>
Welcome to React Native!
</Text>
<Text style={styles.instructions}>
To get started, edit index.ios.js
</Text>
<Text style={styles.instructions}>
Press Cmd+R to reload,{'\n'}
Cmd+Control+Z for dev menu
</Text>
</View>For those of you familiar with HTML, this looks quite similar: we have nested tags, each of which has some attributes. This reflects the modularity we hope to achieve with React Native. We can write once, use the attributes of the component, and render many different times. Additionally, you may see the character {'\n'}; this is an escape character, and is used to go to the next line in the view.
You'll see that on some of our components, there is a style attribute. We define these at the bottom of our file:
var styles = StyleSheet.create({
container: {
flex: 1,
justifyContent: 'center',
alignItems: 'center',
backgroundColor: '#F5FCFF',
},
welcome: {
fontSize: 20,
textAlign: 'center',
margin: 10,
},
instructions: {
textAlign: 'center',
color: '#333333',
marginBottom: 5,
},
});Calling the StyleSheet.create function allows us to create lots of different styling rules; think of these as CSS rules, which can define different attributes on the items in question.
Most of the attributes are pretty self-explanatory: color, textAlign, margin, etc. However, flex is one that may be uncommon to some. This is an attribute from Flexbox, which is a method for laying out content within a view; for example, moving one item to the left of another item, or something similar.
From this file-wide styles object, we can access all of the different rules we want to use throughout our application. For example, we see we apply styles.container to our View object that will contain all of our Text components.
For those of you that have done Objective-C development, this CSS-like styling is much easier than styling in Interface Builder or something comparable. This will save us a lot of time. In addition, we don't need to reload the entire application to view our styling changes. Try changing textAlign to left instead of center, then go to the Simulator and press Cmd-R; you'll see the text shift without having to reload the entire application. Magic!
Note that React CSS is a subset of the CSS that you may be used to seeing. However, most of the functionality is there in the form of slightly modified names; for example text-align becomes textAlign.
Finally, there is a single line at the end of our file:
AppRegistry.registerComponent('GithubFinder', () => GithubFinder);Our AppRegistry.registerComponent method is the way we register our root component. This means that, when the iOS application launches, it will launch our GithubFinder component as the first component that we see when our application starts. Thus, when our application launches, it'll know what to do.This call will generally be the last line of all of our React Native applications, and it is basically just a way to start our application.
Now that we understand our component, let's change it!
Change render to look as follows:
render: function() {
return (
<View style={styles.container}>
<Text style={styles.welcome}>
This is my first custom view!
</Text>
<Image
source={{uri : 'http://www.polyvore.com/cgi/img-thing?.out=jpg&size=l&tid=27610859'}}
style={styles.thumbnail}
/>
</View>
);
}You may notice we're using {} whenever we're using a variable; these are needed to add a variable name into the HTML. This is needed because when we want to add styles, for example, we want to refer to the styles variable, not just the word 'styles.' Additionally, for the source attribute of our <Image> tag, we include a second pair of {} to indicate a JavaScript object, which is taken by the attribute.
Next, change our styles object so that it looks like this:
var styles = StyleSheet.create({
container: {
flex: 1,
justifyContent: 'center',
alignItems: 'center',
backgroundColor: '#F5FCFF',
},
customimg: {
width: 200,
height: 200,
},
});This provides a width and height for the Image object we are adding.
One more thing that we have to do is require the Image component, which we are now using. We do that by changing our React object at the top as follows:
var {
AppRegistry,
Image,
StyleSheet,
Text,
View,
} = React;Now, our application code will look as follows:
'use strict';
var React = require('react-native');
var {
AppRegistry,
Image,
StyleSheet,
Text,
View,
} = React;
var GithubFinder = React.createClass({
render: function() {
return (
<View style={styles.container}>
<Text>
This is my first custom view!
</Text>
<Image
source={{uri : 'http://www.polyvore.com/cgi/img-thing?.out=jpg&size=l&tid=27610859'}}
style={styles.customimg}
/>
</View>
);
}
});
var styles = StyleSheet.create({
container: {
flex: 1,
justifyContent: 'center',
alignItems: 'center',
backgroundColor: '#F5FCFF',
},
customimg: {
width: 200,
height: 200,
},
});
AppRegistry.registerComponent('GithubFinder', () => GithubFinder);and our application will look as follows:

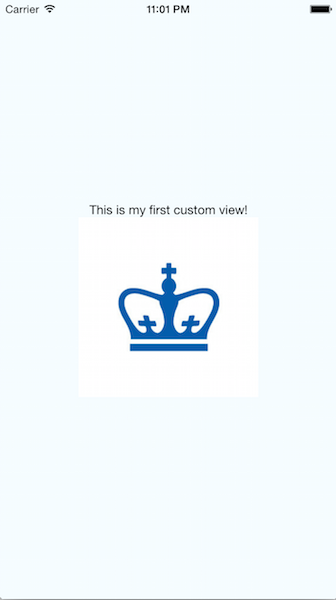

Woohoo! You have now created your first custom view.
Now we are going to work on getting our data. To do this, we will use the GitHub API, which is pretty simple and easy to get the hang of. Let's begin.
First, we need to add our search bar. We'll do this by adding a simple TextInput and adding some styling. Change your render method to the following:
render: function() {
return (
<View style={styles.container}>
<TextInput
autoCapitalize="none"
autoCorrect={false}
placeholder="Search for a project..."
style={styles.searchBarInput}
/>
</View>
);
}We basically create a TextInput object with several different attributes: we don't want our words to autocapitalize or autocorrect, we add a placeholder text, and some styles, which are as follows:
var styles = StyleSheet.create({
container: {
flex: 1,
backgroundColor: 'white',
},
searchBarInput: {
marginTop: 30,
padding: 5,
fontSize: 15,
flex: 1,
height: 30,
backgroundColor: '#EAEAEA',
},

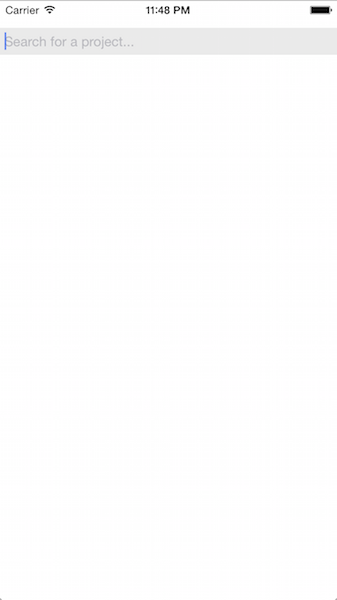

});We change the background color of our TextInput to make it more visible, set its height and top margin, give it some padding, and we're done. The completed view looks like this:
Now, we want to be able to search for our API whenever a user types into the search bar. To do this, we need to use a delegate method. Essentially what this means is that we want a certain function to be called after some action, in this case whenever the user stops typing in the search bar. To do that, we simply set the property onEndEditing on the text input, as follows:
<TextInput
autoCapitalize="none"
autoCorrect={false}
placeholder="Search for a project..."
style={styles.searchBarInput}
onEndEditing={this.onSearchChange}
/>We have not yet implemented this function to actually query the GitHub API to get our data on the search change, but we will do that next.
So, now we must implement our function onSearchChange to query the GitHub API for our results. Let's implement that as follows:
var BASE_URL = 'https://api.github.com/search/repositories?q=';
...
var GithubFinder = React.createClass({
...
onSearchChange: function(event: Object) {
var searchTerm = event.nativeEvent.text.toLowerCase();
var queryURL = BASE_URL + encodeURIComponent(searchTerm);
fetch(queryURL)
.then((response) => response.json())
.then((responseData) => {
if (responseData.items) {
this.setState({
dataSource: this.state.dataSource.cloneWithRows(responseData.items),
});
}
})
.done();
},
});Inside of our function, we create our URL by appending the text that was typed into the search bar. Then, we use our fetch method to find the results of the API call, then once we have the data available, we set the state of our component to include our data source. However, we also check that our items exist; we could have a blank response or an error response which would make us not want to change the data source. We refer to responseData.items because that is the response in which our data comes back; try clicking on [https://api.github.com/search/repositories?q=tetris] and you'll see the format of the object we'll be working with.
Also, the syntax with => may be confused, as it is something that React uses quite heavily. Essentially it is a way to define a function inline, allowing us to do something with the parameter that is in parentheses immediately before it on the line. We can either simply return an object, like we do with response.json(), or we can create a function bounded by curly brackets, which we do on the line with responseData.
We will talk more about the data source line in our next section, but essentially what it does it store the data so we will be able to access it later.
Now, we are done with the data retrieval part of our app! Let's move on to presenting it.
Our code thus far looks as follows:
'use strict';
var React = require('react-native');
var BASE_URL = "https://api.github.com/search/repositories?q=";
var {
AppRegistry,
Image,
ListView,
StyleSheet,
Text,
TextInput,
View,
} = React;
var GithubFinder = React.createClass({
render: function() {
return (
<View style={styles.container}>
<TextInput
autoCapitalize="none"
autoCorrect={false}
placeholder="Search for a project..."
style={styles.searchBarInput}
onEndEditing={this.onSearchChange}
/>
</View>
);
},
onSearchChange: function(event: Object) {
var searchTerm = event.nativeEvent.text.toLowerCase();
var queryURL = BASE_URL + encodeURIComponent(searchTerm);
fetch(queryURL)
.then((response) => response.json())
.then((responseData) => {
if (responseData.items) {
this.setState({
dataSource: this.state.dataSource.cloneWithRows(responseData.items),
});
}
})
.done();
},
});
var styles = StyleSheet.create({
container: {
flex: 1,
backgroundColor: 'white',
},
searchBarInput: {
marginTop: 30,
padding: 5,
fontSize: 15,
flex: 1,
height: 30,
backgroundColor: '#EAEAEA',
},
});
AppRegistry.registerComponent('GithubFinder', () => GithubFinder);Now that we have our data, let's work on presenting it in the form of a list view. In this list view, each row will correspond to a different repository that was returned by our search to GitHub. Let's do it!

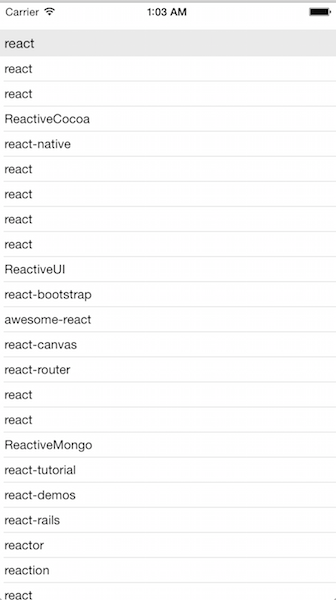

In the previous section, we called the method this.setState. An important aspect of React that we haven't yet introduced is that each Component has its own state, which represents some data we can store about a component. In this case, we want to store a data source, which is the data that our list view will present. When our component is first rendered, we want to set an initial state, which we do using the method getInitialState. Let's implement it as follows:
var GithubFinder = React.createClass({
...
getInitialState: function() {
return {
dataSource: new ListView.DataSource({
rowHasChanged: (row1, row2) => row1 !== row2,
}),
};
},
...
});NOTE: since we are now using ListView, we need to add it to our list of components at the top of our file:
var {
AppRegistry,
Image,
ListView,
StyleSheet,
Text,
TextInput,
View,
} = React;
In this, we create a blank data source with a single attribute, a function which defines whether a row has changed. Don't worry too much about this; all it does is tell the data source that a row has changed if the two rows aren't equal.
Now that we have set our initial state, our data retrieval method will be able to successfully set the rows of our data source using the GitHub search results. We do this so later when we have new data, we can go ahead and alter our original data source to show our new results.
Now, we need to create our list view to show all the results we have loaded. Let's do that. We can simply add a component to our render method as follows:
render: function() {
var content;
if (this.state.dataSource.getRowCount() === 0) {
content =
<Text>
Please enter a search term to see results.
</Text>;
else {
content =
<ListView
ref="listview"
dataSource={this.state.dataSource}
renderRow={this.renderRow}
automaticallyAdjustContentInsets={false}
keyboardDismissMode="onDrag"
keyboardShouldPersistTaps={true}
showsVerticalScrollIndicator={true}
/>;
}
return (
<View style={styles.container}>
<TextInput
autoCapitalize="none"
autoCorrect={false}
placeholder="Search for a project..."
style={styles.searchBarInput}
onEndEditing={this.onSearchChange}
/>
{content}
</View>
);
},Let's look at this piece by piece. First, we add our search bar, just like we did before. Then, we do create a variable, called content, which will define what is put next in our view. If our data source doesn't have any rows, meaning we don't have any data results to show, we prompt the user to enter a search term. If, however, we do have search results, then we add a list view.
Our List View object has several attributes that we must set. One is our data source, the source from which the list will render itself. Next, we provide a method, called renderRow, which will render each row in the list; we'll implement that next. Then, we implement several styling keywords that help to define the actions of our ListView; there are many different available properties and those can be found in the documentation.
Now, we want to show row to render each of our rows. We do that by implementing a the method that we placed as our delegate method for rendering rows, this.renderRow. We can implement that here:
renderRow: function(repo: Object) {
return (
<View>
<View style={styles.row}>
<Text>
{repo.name}
</Text>
</View>
<View style={styles.cellBorder} />
</View>
);
},Here, we create a basic row that shows just the name of the searched-for repository.
We add two rules to our styles, row and cellBorder to provide the basic rules for our cells:
row: {
alignItems: 'center',
backgroundColor: 'white',
flexDirection: 'row',
padding: 5,
},
cellBorder: {
backgroundColor: 'rgba(0, 0, 0, 0.1)',
height: 1,
marginLeft: 4,
},Now, if we search for an object, we will see our basic results:
We're almost done with our app!
Now, let's add some more detail to our row, and style it so it looks nicer.
First, we're going to add the user's profile image to the row. Next, we're going to add both the user's name and the name of the repository. We will use some style to set one as the title and one as the subtitle. Then, we will create some styling for the container so padding looks correct.
Here's our edited renderRow function:
renderRow: function(repo: Object) {
return (
<View>
<View style={styles.row}>
<Image
source={{uri: repo.owner.avatar_url}}
style={styles.profpic}
/>
<View style={styles.textcontainer}>
<Text style={styles.title}>{repo.name}</Text>
<Text style={styles.subtitle}>{repo.owner.login}</Text>
</View>
</View>
<View style={styles.cellBorder} />
</View>
);
},Finally, here are all the styles that are newly created:
profpic: {
width: 50,
height: 50,
},
title: {
fontSize: 20,
marginBottom: 8,
fontWeight: 'bold'
},
subtitle: {
fontSize: 16,
marginBottom: 8,
},
textcontainer: {
paddingLeft: 10,
},In addition, we add one more rule to our blank view text, so it looks a little bit nicer if we haven't typed anything yet:
blanktext: {
padding: 10,
fontSize: 20,
}
...
<Text style={styles.blanktext}>
Please enter a search term to see results.
</Text>Try typing in a search term and scrolling through; you'll see all your search results looking beautiful!
Our completed app looks as follows:
Thus, with these final style changes, we have finished our GithubFinder app!
Our final code looks as follows:
/**
* Sample React Native App
* https://github.com/facebook/react-native
*/
'use strict';
var React = require('react-native');
var BASE_URL = "https://api.github.com/search/repositories?q=";
var {
AppRegistry,
Image,
ListView,
StyleSheet,
Text,
TextInput,
View,
} = React;
var GithubFinder = React.createClass({
getInitialState: function() {
return {
dataSource: new ListView.DataSource({
rowHasChanged: (row1, row2) => row1 !== row2,
}),
};
},
render: function() {
if (this.state.dataSource.getRowCount() === 0) {
console.log("YES");
}
var content = this.state.dataSource.getRowCount() === 0 ?
<Text style={styles.blanktext}>
Please enter a search term to see results.
</Text> :
<ListView
ref="listview"
dataSource={this.state.dataSource}
renderRow={this.renderRow}
automaticallyAdjustContentInsets={false}
keyboardDismissMode="onDrag"
keyboardShouldPersistTaps={true}
showsVerticalScrollIndicator={false}
/>;
return (
<View style={styles.container}>
<TextInput
autoCapitalize="none"
autoCorrect={false}
placeholder="Search for a project..."
style={styles.searchBarInput}
onEndEditing={this.onSearchChange}
/>
{content}
</View>
);
},
onSearchChange: function(event: Object) {
var searchTerm = event.nativeEvent.text.toLowerCase();
var queryURL = BASE_URL + encodeURIComponent(searchTerm);
fetch(queryURL)
.then((response) => response.json())
.then((responseData) => {
if (responseData.items) {
this.setState({
dataSource: this.state.dataSource.cloneWithRows(responseData.items),
});
}
})
.done();
},
renderRow: function(repo: Object) {
return (
<View>
<View style={styles.row}>
<Image
source={{uri: repo.owner.avatar_url}}
style={styles.profpic}
/>
<View style={styles.textcontainer}>
<Text style={styles.title}>{repo.name}</Text>
<Text style={styles.subtitle}>{repo.owner.login}</Text>
</View>
</View>
<View style={styles.cellBorder} />
</View>
);
},
});
var styles = StyleSheet.create({
container: {
flex: 1,
backgroundColor: 'white',
},
searchBarInput: {
marginTop: 30,
padding: 5,
fontSize: 15,
height: 30,
backgroundColor: '#EAEAEA',
},
row: {
alignItems: 'center',
backgroundColor: 'white',
flexDirection: 'row',
padding: 5,
},
cellBorder: {
backgroundColor: 'rgba(0, 0, 0, 0.1)',
height: 1,
marginLeft: 4,
},
profpic: {
width: 50,
height: 50,
},
title: {
fontSize: 20,
marginBottom: 8,
fontWeight: 'bold'
},
subtitle: {
fontSize: 16,
marginBottom: 8,
},
textcontainer: {
paddingLeft: 10,
},
blanktext: {
padding: 10,
fontSize: 20,
}
});
AppRegistry.registerComponent('GithubFinder', () => GithubFinder);Our application is certainly functional, and demonstrates many of the main concepts of React Native development. We saw the modularity of components, the precision of styling, and the rest of the awesome features that React has to offer.
If you're wanting more concrete examples of projects to work on, check here. There are all sorts of demonstrations of cool projects there that will get you working on different parts of application development with React Native. Or, if you're interested in continuing with GithubFinder, try making it so you can tap each list item and see a detail view with some more information, or maybe be able to search by user instead of just by repository.
My name is Matt Piccolella, the GitHub repository for this is available here, and this application was based on the sample application available here.
While React Native is still a very new technology, there are still lots of quality resources available to learn more about it. Below are some good places to start:
